Giulietta on Euro narrow stile plates 60 series

Product Code: GI-PR60

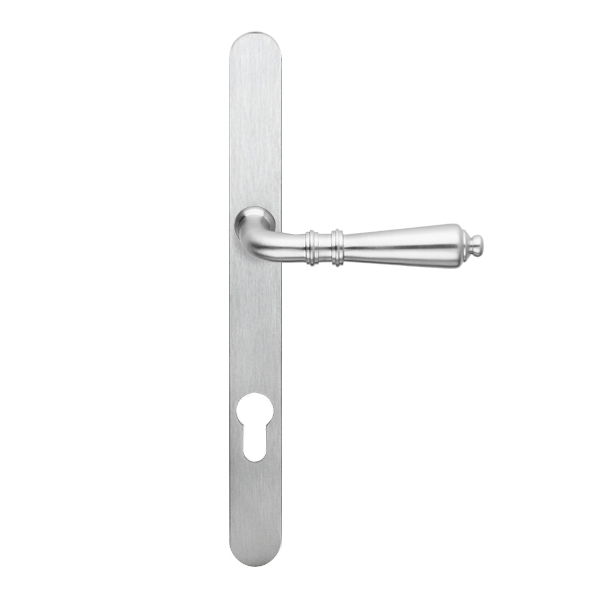

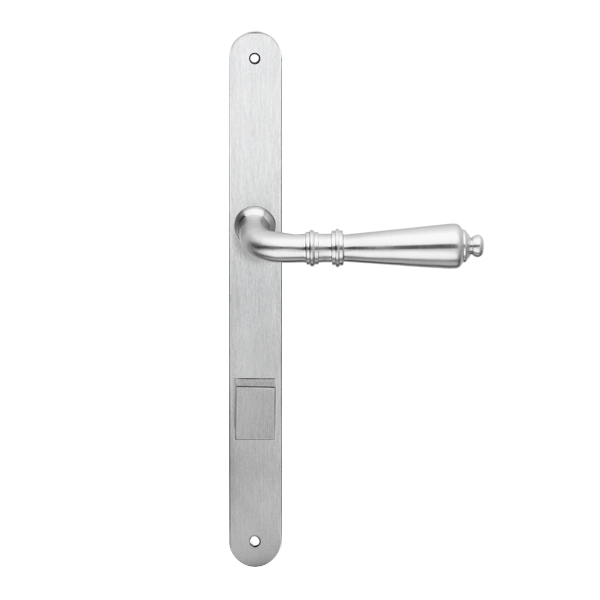

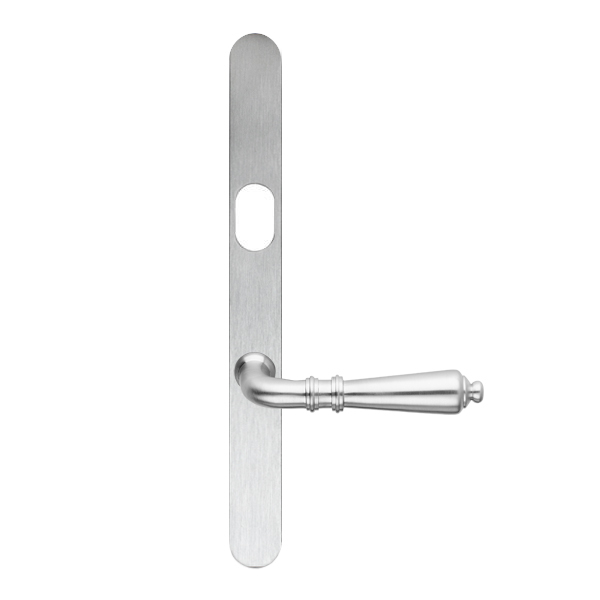

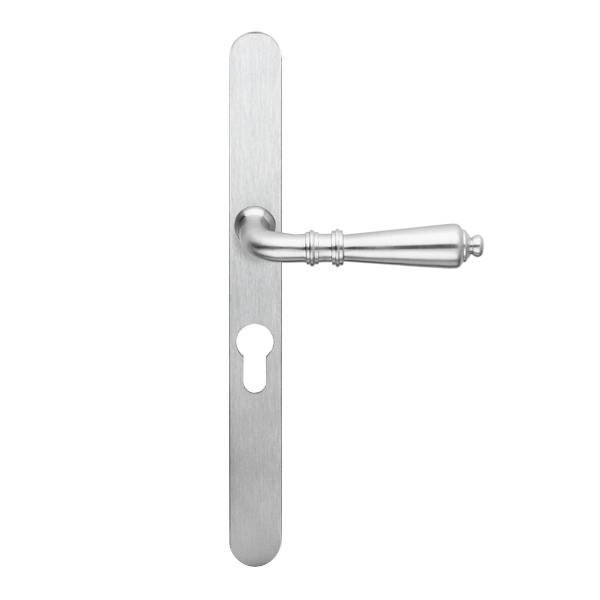

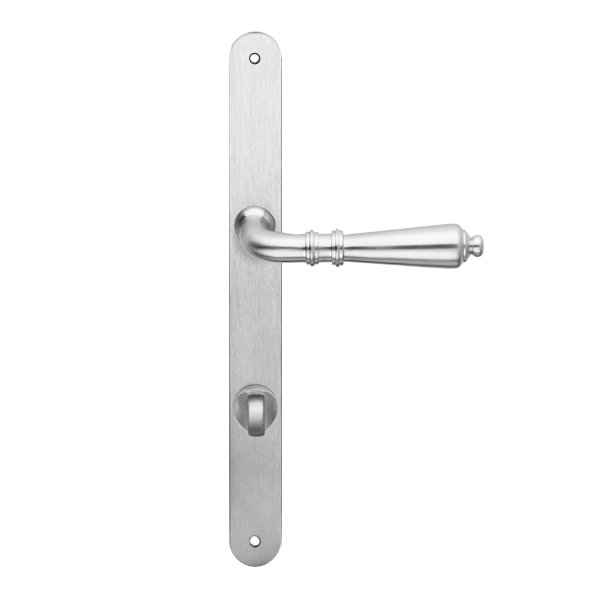

Traditionally sculptured and detailed in design, the Giulietta lever door handle offers sophisticated style mounted on a slimline, Oval, contemporary backplate that gives an added feature to your doors. This backplate works with Euro and Australian locks.
Need Help?

Click here for assistance in using this page to create Spec Sheets or request a quote.

Giulietta on Euro narrow stile plates 60 series

My Configuration Please select all options to complete your configuration

Specifications

  • Material
    Brass
  • Dimensions

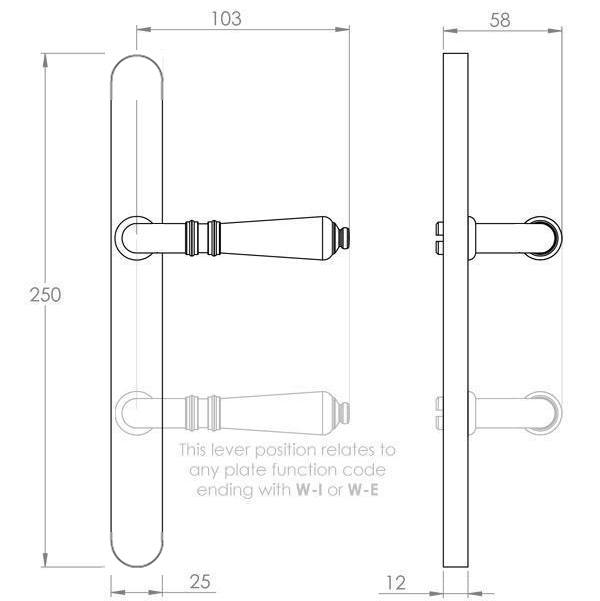

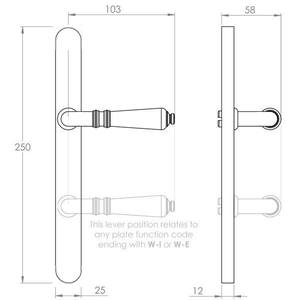

    Overall h250 x w115.5 x d58 mm (see line drawing download)
  • Fixing
    Through bolt fixing, fully concealed. Self adjusting spindle 7.6mm to 8mm. Fits any lock or latch.
  • Door Thickness
    Suits from 32mm to 52mm door as standard. For thicker doors longer screws and spindles are available.
  • Application
    This door handle suits most internal and external, swinging door applications.
