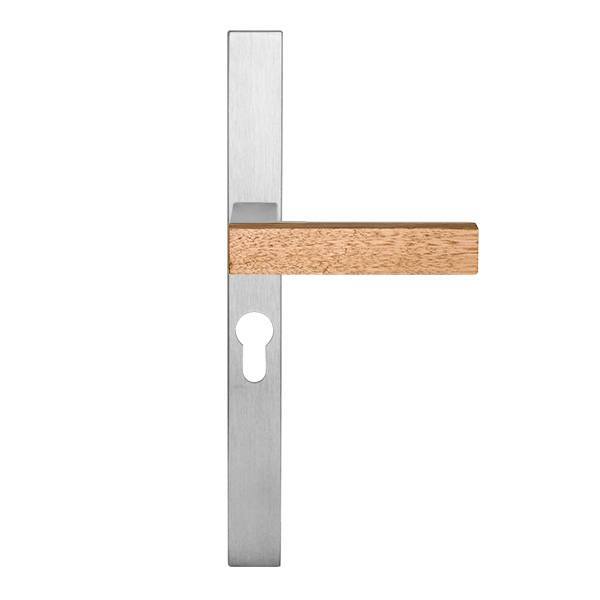

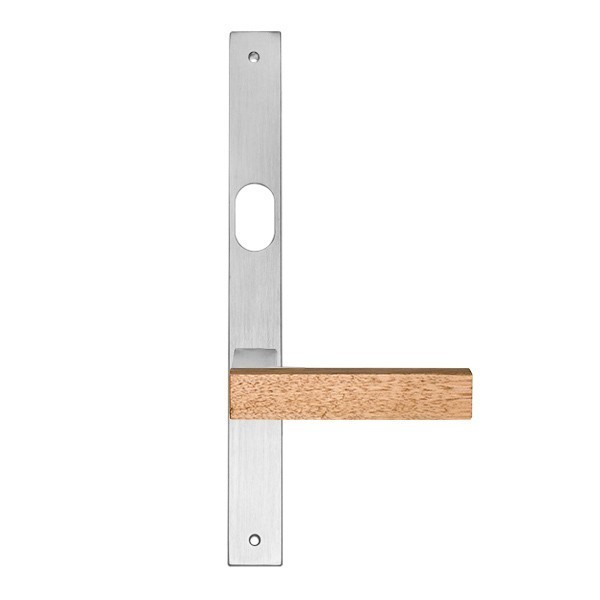

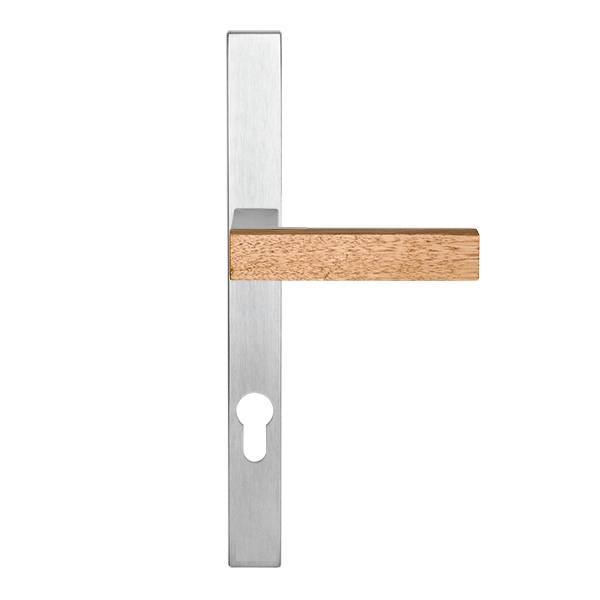

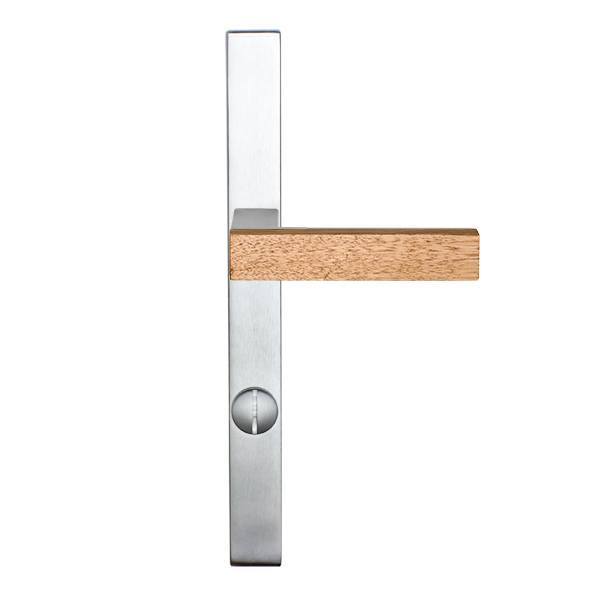

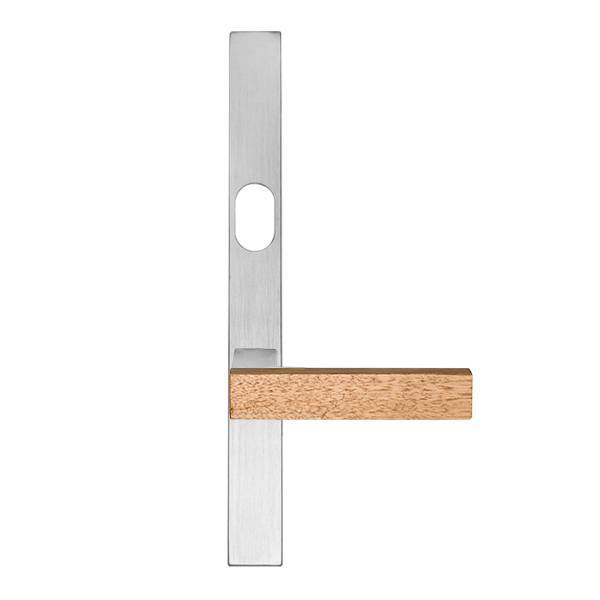

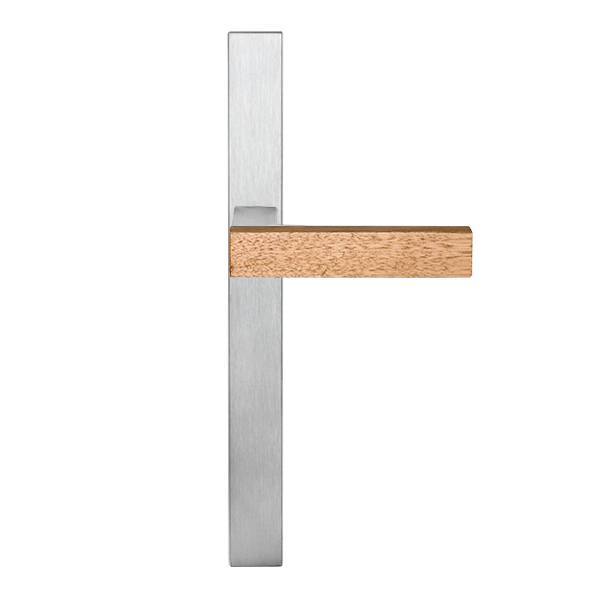

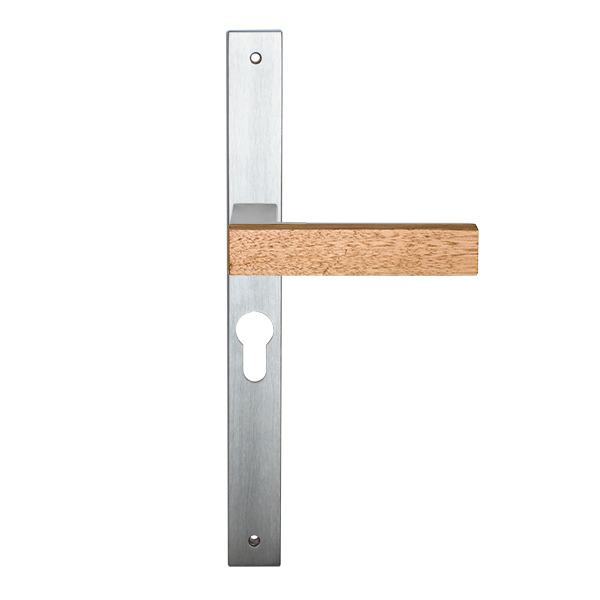

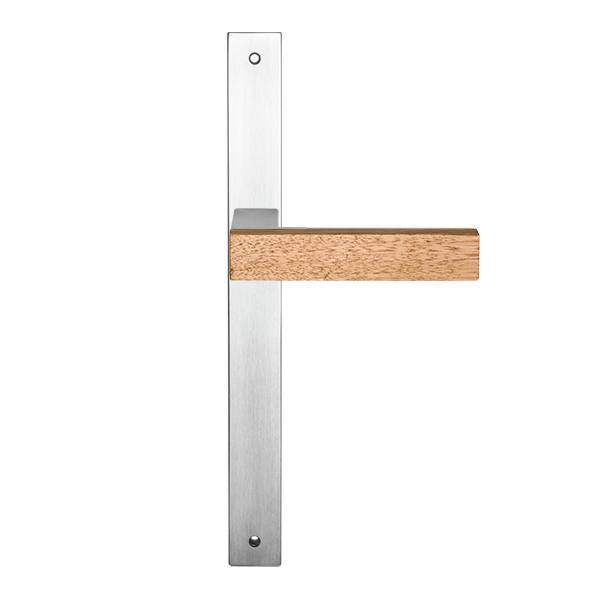

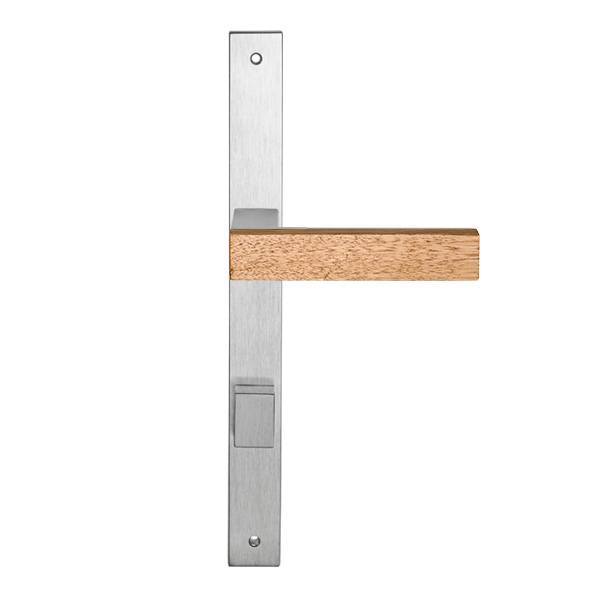

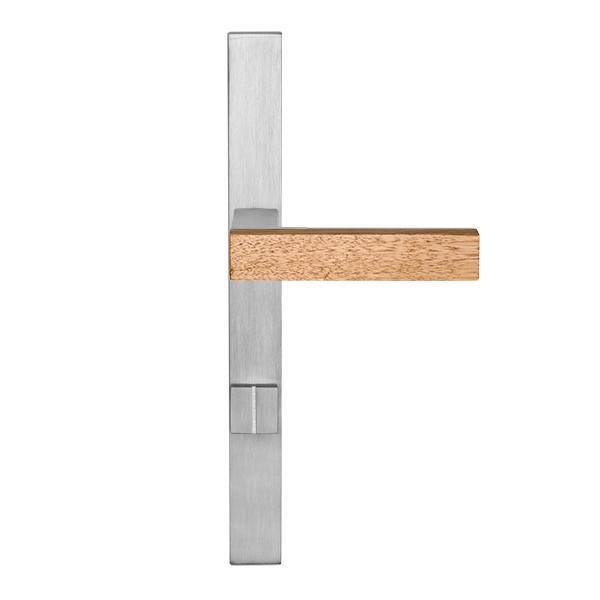

Timber Quad on Euro narrow stile plates 60 series

Product Code: TQU-PS60

With its inherent warmth and texture, the award-winning Timber Quad is a pleasure to use. Inspired by early 20th century modernist architecture, the confident exhibition of sleek lines ensures the Timber Quad adds a modern touch to any door. This contemporary backplate works with Euro and Australian locks.

Need Help?

Click here for assistance in using this page to create Spec Sheets or request a quote.

Timber Quad on Euro narrow stile plates 60 series

My Configuration Please select all options to complete your configuration

Specifications

  • Material
    American White Oak or American Black Walnut, Brass
  • Dimensions

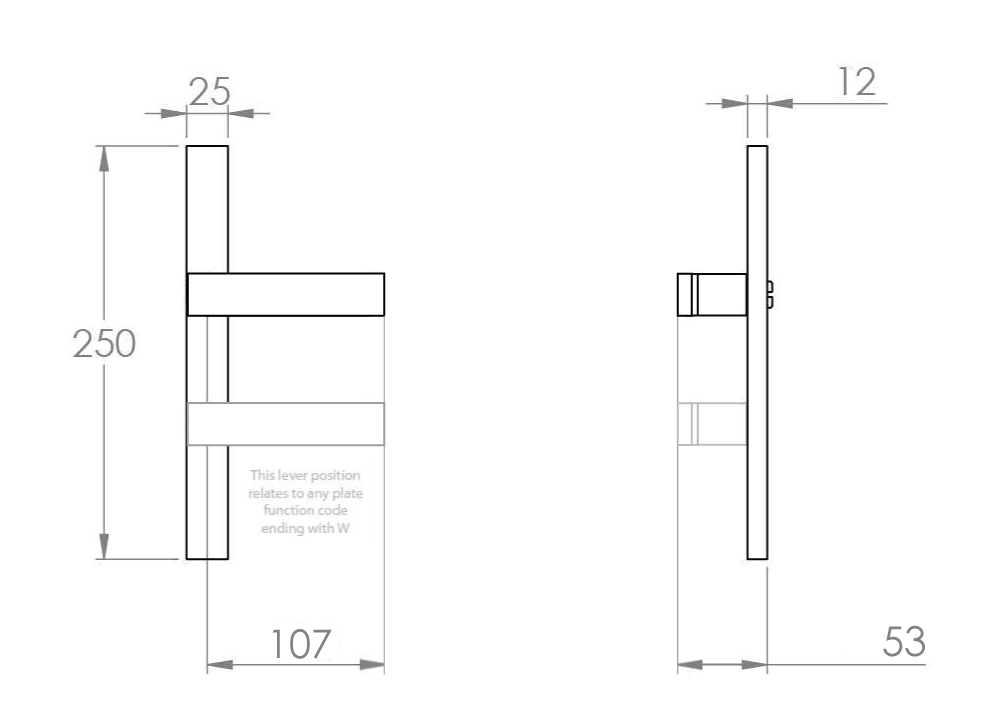

    Overall h250 x w122.5 x d53 mm (see line drawing download)
  • Fixing
    Through bolt fixing, semi concealed. Self adjusting spindle 7.8mm to 8mm. Fits any lock or latch.
  • Door Thickness
    Suits from 32mm to 52mm door as standard. For thicker doors longer screws and spindles are available.
  • Application
    This door handle suits most internal and external, swinging door applications.
